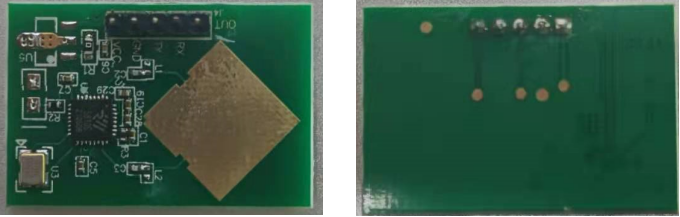

Features
Longer sensing distance than infrared sensor module, wider angle, no dead zone, lens and lens aging problems are not affected by temperature, humidity, airflow, dust, noise, brightness, etc., strong anti-interference ability can penetrate acrylic, glass and thin Built-in MCU of non-metallic materials, embedded multiple digital filtering algorithms, with higher noise immunity
Application areas and scenarios
Used in induction lights, security, small appliances, smart homes, automatic door control switches, welcomeers and other products, as well as garages, corridors, corridors, courtyards, balconies, toilets and other places that require automatic induction and control of lights.
Product parameter
| parameter | Small value | Typical value | Big value | unit | Remark |
|---|
| Transmit frequency | 5725 | 5800 | 5875 | MHZ | |
| Input voltage | 4.5 | 5 | 5.5 | V | If input high voltage, need to add LDO |
| Input high level | | 5 | | V | |
| Output low level | | 0 | | V | |
| Beam angle | | 120 | | | Related to the antenna |
| Working current | | 20 | | mA | |
| Sensing distance | 0.1 | 2.5 | 12 | M | Adjustable |
| Delay time | | 2 | | S | Adjustable |
| Photosensitive value | N/A | N/A | N/A | | No photosensitivity |
| Operating temperature | -30 | | 85 | °C | |
| storage temperature | -50 | | 125 | °C | |
The delay time can be customized according to customer needs, whether a photosensitive switch is required and the trigger intensity
Installation Precautions
· Avoid installing metal accessories or shells, metal will block the microwave and affect the effect
· Antenna surface should avoid high current circuit coverage, which may cause interference
· The output current of the sensor is very weak, and driving too large current may easily cause false alarms. The load can be driven by an isolated driving method, so that the OUT pin can read the status of the output port.
· Please use a power supply with a smaller ripple for power supply, especially low-frequency ripples are likely to interfere with the work of the sensor. It is recommended that the power supply capacitor be greater than 100uF
· The recommended installation distance of the sensor is greater than 1.5m

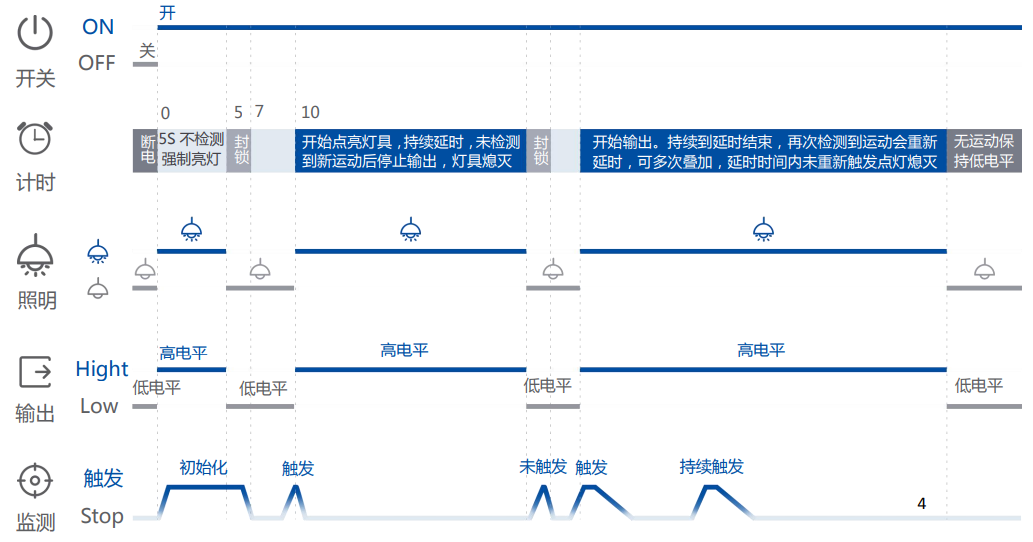

Timing diagram
Precautions
· The installation process of the product requires keeping the antenna board at a certain height away from the metal plane, and not close to or touching the metal plane, otherwise the product may not work normally!
· Avoid installing metal accessories or enclosures. Metal will block microwaves and affect the effect; therefore, this product should not be installed in a metal enclosure for use. However, the penetration effect is better for obstacles such as plastic, ceramics, and wood soil;
· Please use a power supply with a small ripple for power supply, especially low-frequency ripples are likely to interfere with the operation of the sensor. It is recommended that the power supply capacitance be greater than 100uF;
· The output current of the sensor is very weak. Excessive current driving is likely to cause false alarms. The load can be driven by isolation driving, or the MCU can be used to read the status of the output port;
· When multiple sensors are used in the same site, it is recommended that the product installation distance be greater than 1.5m. Too close the installation distance may cause false alarms in individual cycles;
· The antenna surface should be protected from high-current circuit coverage, which may cause interference.
