With the rapid development of wireless communication technology, Ultra-Wideband (UWB) technology, with its unique characteristics of high speed, low power consumption, high-precision positioning, has gradually become the new darling of the Internet of Things, smart home, intelligent transportation and other fields. In this paper, the technical characteristics, application scenarios and future development trends of CM-level positioning UWB chip and its UWB module will be discussed in detail, so as to provide in-depth and comprehensive understanding for practitioners in related fields.

I. Overview of UWB technology

UWB technology is a kind of wireless communication technology that transmits data by non-sinusoidal narrow pulse from nanosecond to microsecond. Compared with traditional wireless communication technology, UWB technology has a wider spectrum range and higher data transmission rate, while its power consumption is relatively low. This makes UWB technology a significant advantage in the field of short-range wireless communication, especially in scenarios where high-precision positioning is required.

2. Technical characteristics of centimeter-level positioning UWB chip

As the core component of UWB technology, cm-level positioning UWB chip directly determines the positioning accuracy and stability of the whole system. The following are the main technical features of centimeter-level positioning UWB chips:

High precision positioning capability

Centimeter-level positioning UWB chip can achieve centimeter-level accurate positioning by using advanced signal processing algorithms and positioning algorithms. This is mainly due to the high bandwidth and high rate characteristics of the UWB signal, which enables the chip to capture more signal details, so as to achieve accurate measurement of the target position. In addition, the positioning accuracy and stability can be further improved by means of multi-base station collaborative positioning.

Low power design

In order to meet the needs of long-term operation and mobile devices, cm-level positioning UWB chips are designed to pay attention to low power consumption. By adopting low power consumption circuit design and optimizing communication protocol, the chip effectively reduces power consumption and prolonging the battery life of the device. At the same time, the chip also supports a variety of working modes, which can be flexibly adjusted according to actual needs to achieve the best balance of power consumption and performance.

Strong anti-interference ability

In the complex electromagnetic environment, cm-level positioning UWB chip shows a strong anti-interference ability. This is mainly due to the high bandwidth characteristics of UWB signals, so that the signal can resist the influence of a variety of interference factors during transmission. In addition, the chip also uses advanced signal processing technology, which can effectively filter out noise and interference signals to ensure the accuracy and stability of positioning data.

Miniaturized design

With the continuous development of integrated circuit technology, the volume of centimeter-level positioning UWB chips is shrinking, which is easy to be integrated into various small devices. This makes the application of UWB technology in the Internet of Things, wearable devices and other fields more convenient and flexible. At the same time, the miniaturized design also helps to reduce production costs and promote the popularization and application of UWB technology.

Third, the application scenario of UWB module

As the application carrier of cm-level positioning UWB chip, the performance and application scenarios of UWB module are also worthy of attention. The following are the main application scenarios of UWB modules:

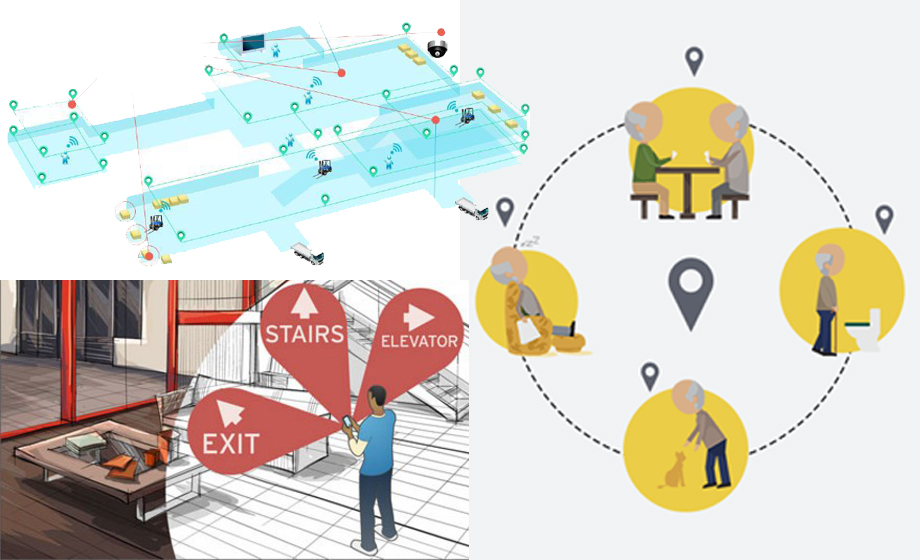

Indoor positioning and navigation

In large indoor places such as shopping malls, hospitals, and museums, users often need to understand their location and the surrounding environment. The ultra-wideband UWB module's high-precision positioning capability enables these locations to provide accurate indoor positioning and navigation services. By deploying multiple UWB base stations and mobile tags, real-time tracking and navigation of user locations can be achieved to help users quickly find destinations and improve user experience.

Driverless and autonomous driving

Driverless and autonomous vehicles require real-time access to location information about the surrounding environment to achieve precise control. The UWB module provides centimeter-level positioning accuracy for vehicles, helping to improve the safety and stability of driverless and autonomous driving systems. By combining with other sensors (such as radar, camera, etc.), it can achieve a comprehensive perception and accurate judgment of the surrounding environment of the vehicle, so as to ensure the safety of the vehicle in complex road conditions.

Iot device location and tracking

Iot devices usually need to know the location information of the device in real time to achieve intelligent management. The ultra-wideband UWB module can achieve accurate positioning and tracking of iot devices, providing strong support for logistics, warehousing, asset management and other fields. By deploying UWB base stations and labels, real-time tracking and positioning of items can be achieved to help enterprises achieve intelligent management and decision-making.

Smart home and security

In the field of smart home and security, ultra-wideband UWB modules also have a wide range of application prospects. By installing UWB tags and sensors, it is possible to track the location of family members and pets, as well as precise control of equipment such as doors, Windows and appliances. At the same time, combined with other security equipment (such as cameras, alarms, etc.), intrusion detection and alarm functions can also be achieved to improve the level of home security.

Fourth, future development trend

With the continuous development of technologies such as the Internet of Things and artificial intelligence, the application fields of centimeter-level positioning UWB chips and ultra-wideband UWB modules will be further expanded. In the future, UWB technology is expected to make breakthroughs in the following aspects:

Higher precision positioning technology

With the continuous progress of algorithm and hardware technology, cm-level positioning UWB chip is expected to achieve higher precision positioning performance. By optimizing the signal processing algorithm and positioning algorithm, the positioning accuracy and stability can be further improved, and more accurate location information can be provided for more application scenarios.

Lower power chip design

Low power design has always been an important development direction of wireless communication technology. In the future, the cm-level positioning UWB chip will further optimize the circuit design, use more advanced low-power technology, reduce power consumption, and extend the battery life of the device. This will help promote the application of UWB technology in mobile devices, wearable devices and other fields.

Multi-mode fusion positioning technology

The integration of UWB technology with other wireless positioning technologies (such as Bluetooth, Wi-Fi, ZigBee, etc.) to achieve multi-mode fusion positioning is a major trend in the future development of wireless communication technology. The multi-mode fusion positioning technology can make full use of the advantages of various positioning technologies, improve the reliability and stability of the positioning system, and meet the positioning requirements in different scenarios. For example, in complex indoor environments, UWB technology can provide high-precision positioning, while Wi-Fi or Bluetooth technology can provide broader coverage. By integrating these technologies, the indoor and outdoor environment can be seamlessly positioned to provide users with more convenient and efficient services.

Intelligent application development

With the continuous development and popularization of artificial intelligence technology, UWB technology will be more closely combined with AI technology to achieve more intelligent applications. By combining machine learning algorithms and big data analysis technology, UWB positioning system can realize intelligent identification and prediction of human behavior, and provide more abundant functions for smart home, intelligent security and other fields. For example, in the field of smart home, UWB technology can realize the automatic learning of the behavior patterns and habits of family members, and automatically adjust the operating status of home equipment according to this information, improving the comfort and convenience of living.

Standardization and connectivity

In order to realize the wide application and interconnection of UWB technology, standardization is particularly important. In the future, with the continuous development of UWB technology and the expansion of application fields, relevant international and domestic standards will continue to improve and unify. This will help promote the interoperability of UWB devices, reduce production costs, and promote the popularization and application of the technology. At the same time, standardization will also help improve the security and reliability of UWB technology to ensure the privacy and security of user data.

V. Conclusion

As an emerging wireless communication technology, CM-level positioning UWB chip and its ultra-wideband UWB module have shown great application potential and market value in the fields of Internet of Things, smart home, intelligent transportation and so on. With the continuous progress of technology and the expansion of application scenarios, UWB technology will play an increasingly important role in the future. As practitioners, we should pay close attention to the development of UWB technology, strengthen technology research and development and innovation, promote the formulation and improvement of relevant standards, and contribute wisdom and strength to the development of wireless communication technology.

In short, the cm-level positioning UWB chip and its UWB module show broad application prospects in many fields with their advantages of high precision, low power consumption and strong anti-interference ability. With the continuous progress of technology and the continuous development of the market, we have reason to believe that UWB technology will play a more important role in the future wireless communication field, bringing more convenience and innovation to people's lives.
